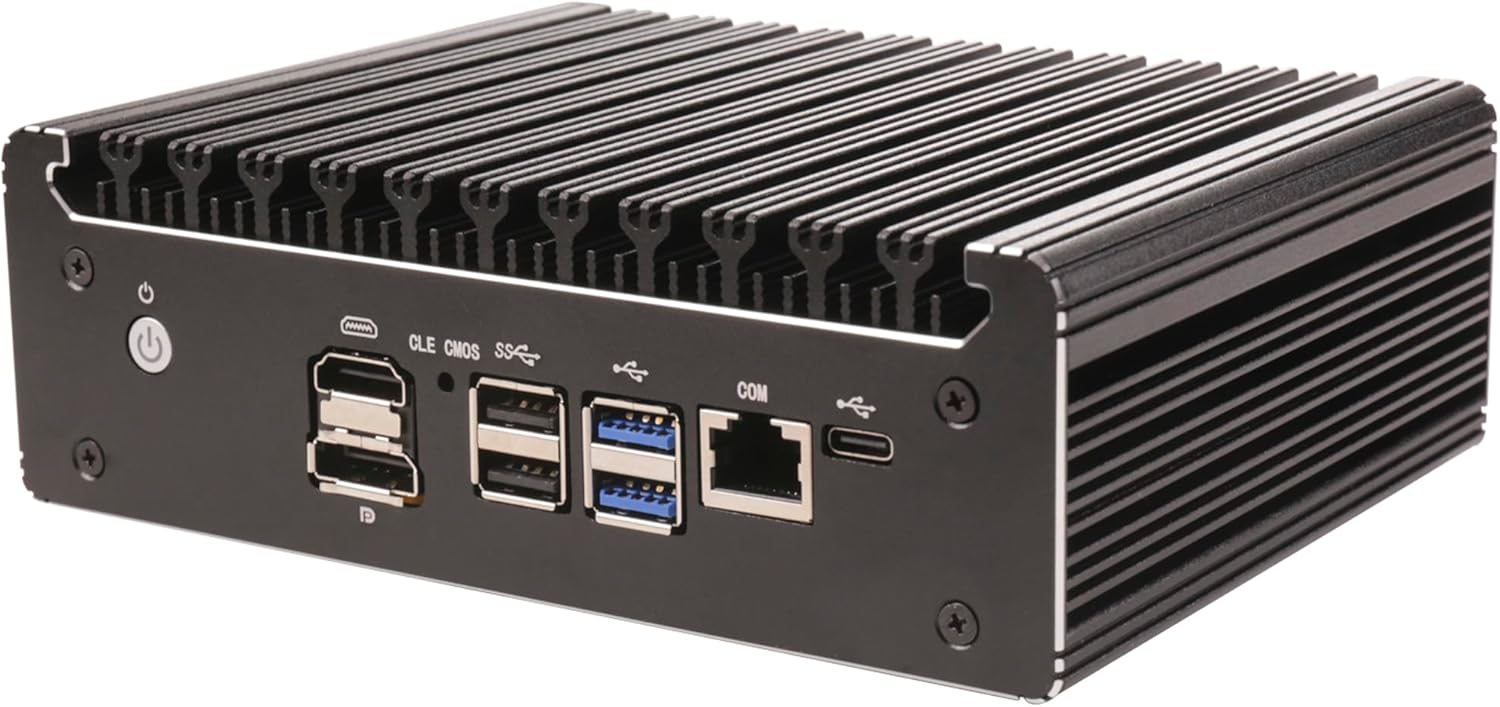

6 Port i226 2.5G Firewall Micro Appliance, Fanless Firewall Mini PC Alder Lake-N N100, HDMI, DP, Type-C, 4xUSB, AES-NI VPN Router Support pfsense Openwrt, WiFi Slot, Barebone
Product details
| Management number | 216120938 | Release Date | 2026/04/19 | List Price | US$12.00 | Model Number | 216120938 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name: 6 Lan Fanless Firewall Mini PC N100 CPU: Alder Lake-N N100 ( 4C/ 4T, up tp 3.4Ghz) Size: 163* 133* 55 cm Weight: 1.5kg Color: Gray PC box material: Aluminum alloy USB: 3xUSB3.0, 1xUSB2.0+ 1x Type-C USB2.0 Lan: 6x Intel i226-V 2.5G RJ45 LANs Ram: 1xDDR4 SODIMM non-ECC ram slot, support max 32GB 3200MHz SSD: Support 2 storages: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1x2.5'' SATA3.0 7mm SSD/HDD Wifi: 1xM.2 2230 WiFi slot, support WiFi connection(optional) Video output:1xHDMI and 1xDP support dual 4K@60Hz UHD video display Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc dissipate heat: fanless system Low consumption TDP and can be mounted back of monitor by VESA bracket Package List 1x Mini PC 1x Power Adapter 1x Power Cord 1x SATA Cable
- 4K Mini PC & Firewall Appliance:This Micro Appliance is made of full aluminum alloy high quality solid-built shell, secure your network with a compact, fan firewall, Compared to other similar N100 firewall PCs, the size of this machine is 163 mm * 133 mm * 55 mm, and the chassis has been lengthened to increase heat dissipation performance, just add a mouse, keyboard, display, it can serve as a working sation station for 7x24 hours home mini PC
- Efficient Processor: equipped with N100 processors, 4 cores, 4 threads, 64 bit, up to 3.4GHz, Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
- Stable Firewall Lan: designed with 6* Intel i226-V 2.5G RJ45 LANs, this hard hardware tested compatible with pfSense, untangle, OPNsense and other popular open-source software solutio
- Ram & SSD Design: support 1x DDR4 SODIMM non-ECC ram slot, support max 32GB 3200MHz, Support 2 storages: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1x2.5'' SATA3.0 7mm SSD/HDD
- I/ O Port & Wifi Slot: 3xUSB, 1xUSB3.2, 1xType-C, HDMI2.0+ DP, at same time support 2 x 4K@60Hz video display, 1xM.2 2230 WiFi slot, support WiFi connection(optional)
| Brand | Dozlzyp |
|---|---|
| Color | N100 |
| RAM Type | DDR4 SDRAM |
| Model Name | X6E |
| Aspect Ratio | 16:9 |
| Manufacturer | Dozlzyp |
| Memory Speed | 3200 MHz |
| Model Number | TDDX6E |
| BuiltIn Media | / |
| Processor Brand | Intel |
| Processor Count | 4 |
| Processor Speed | 3.4 GHz |
| Total Usb Ports | 5 |
| Operating System | pfsense |
| Processor Series | Others |
| Hardware Interface | Ethernet, HDMI, USB |
| Memory Clock Speed | 3200 MHz |
| Hard Disk Interface | PCIE x 2 |
| HumanInterface Input | Keyboard, Mouse |
| Graphics Card Interface | Integrated |
| Specific Uses For Product | Business |
| Number of Component Outputs | 2 |
